8KW On&Off-grid Complete Solar System
8kW Hybrid solar system: Social Power as a Backup
In the rare event that your battery is depleted, or you have exceptionally high energy demands, your solar hybrid system can draw electricity from the societal power grid. This dynamic approach guarantees that you'll always have access to the energy you need, regardless of your consumption levels.
PRODUCT INFO

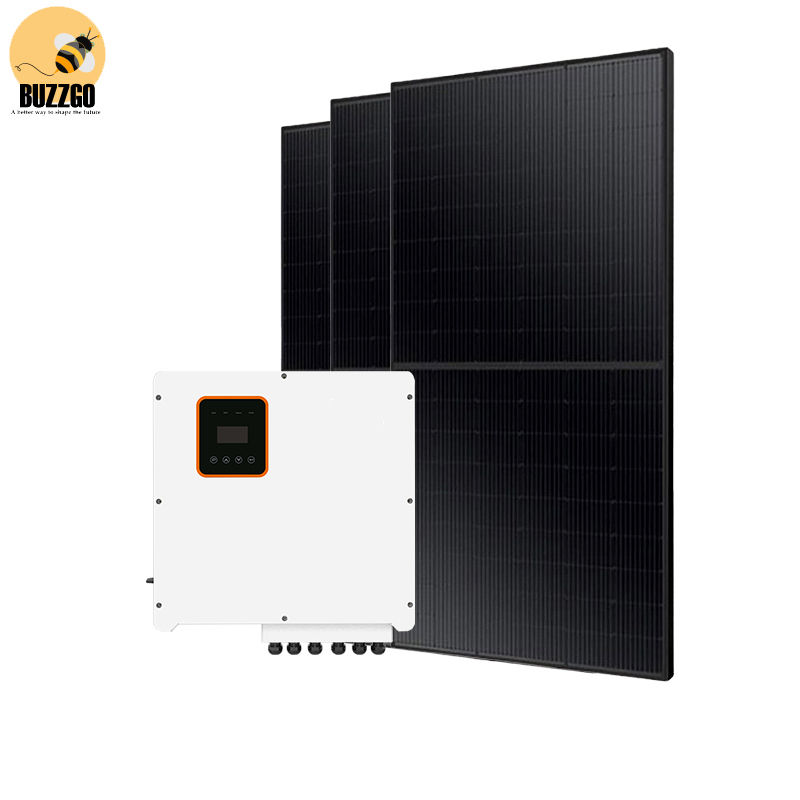

8kW on&off-grid Complete Solar Solution.
- Daily power generation: <49KWH
- Battery Bank Storage:19.2KWH
- Gel battery system: Total volume:3.6CBM / weight:920KG.
- LiFePO4 system: Total Volume:3.4cbm/weight:806kg.
Comes complete with:
- Solar Panels: Maximum 700W solar panel optional.
- Powerful Inverter:BD8KTR-RH3 MAX PV input:13KW
- Solar battery: Gel or Lithium battery.
- Panel rack: Slope Rooftop/ Flat rooftop/ground.
- Cables.
- Installation Tools.
SHIPPING INFO
Delivery 60 days from signed order and deposit payment, installation date to be agreed.
TECH SPECS
| Solar Panel | Vmp:38.39V Voc:47.13V Imp 9.25A Coated steel Glass:3.2mm Tempered. |
| Solar Inverter |
Three phase on/off grid inverter Model BD8KTR-RH3. MAX PV input:13KW. MPPT range:180-850V Output current:12.7A Output power:8.8KVA Output voltage :400V , 3L+N+PE Battery voltage:192V. Charge current:40A. Full Battery Voltage:210V. European Efficiency:97.5% Size:530 × 600 × 200 mm. Weight:29KG. Communication Standard: RS485 / CAN / DRM. Optional: WiFi / 4G. |
| Solar Battery |
1.Gel Battery: Capacity:12V/100AH Warranty: 2 years. Service life:6-8 years Size:522*240*219mm
|
| Bracket |
Slope Rooftop /Flat rooftop/ground wind load:55m/s. Snow load:1.5kn/m2 |
| Accessories |
1)14pcs 16mm2*35CM, 4pcs 16mm2*2M battery cable, 16mm *20M 2)4mm2 PV cable 100M, (black+ red) 3)1set MC4 Tools ,PV terminals and MC4 4)2P 63A Battery switch and box |
